Full Height Turnstile With Automatic Reset And Anti Tailgating Function
Product Overview
The Z217 rotating turnstile is specifically designed for high-security applications such as construction sites, industrial parks, and campuses. Its full-height enclosed structure prevents climbing or crawling through, virtually eliminating unauthorized intrusion.
Constructed entirely from stainless steel, this turnstile offers waterproof, UV-resistant, cold-resistant, and heat-resistant properties, ensuring reliable operation both indoors and outdoors in all weather conditions. It seamlessly integrates with identification systems including facial recognition terminals and card readers, enabling intelligent access control and attendance management.
When workers enter by swiping a card or using facial recognition, the system automatically records entry time. Upon exit, the system calculates total working duration and can deduct preset periods such as lunch breaks. The resulting attendance report can be directly exported and interfaced with payroll systems, eliminating manual errors and buddy-punching while enabling unattended, highly efficient management.
Key Features & Advantages
- Fully Enclosed Anti-Climb Design: Full-height rotating structure prevents climbing or crawling through, offering superior security compared to swing gates or wing barriers.
- Superior Environmental Adaptability: Waterproof, UV-resistant, cold-resistant, and heat-resistant with high IP rating. Withstands heavy rain, intense sunlight, and freezing temperatures.
- Smooth, Low-Noise Operation: Unique mechanism design ensures smooth operation with minimal noise, low mechanical wear, and extended service life.
- Automatic Unlocking for Safety: Upon power failure, automatically unlocks and switches to mechanical mode, allowing free passage and complying with fire safety regulations.
- Automatic Reset and Anti-Tailgating: Cancels permission and returns to initial state if authorized user doesn't pass within preset time, preventing permission abuse.
- Two-Way Passage Indicator: Bright two-way arrow indicator lights with clear red/green status signals effectively guide pedestrian flow and prevent congestion.
- Intelligent Attendance Management: Automatically calculates working hours, deducts breaks, generates reports, and interfaces with payroll systems to eliminate buddy-punching and reduce management costs.
Technical Specifications
| Product Name |
Full Height Turnstile |
| Product Size |

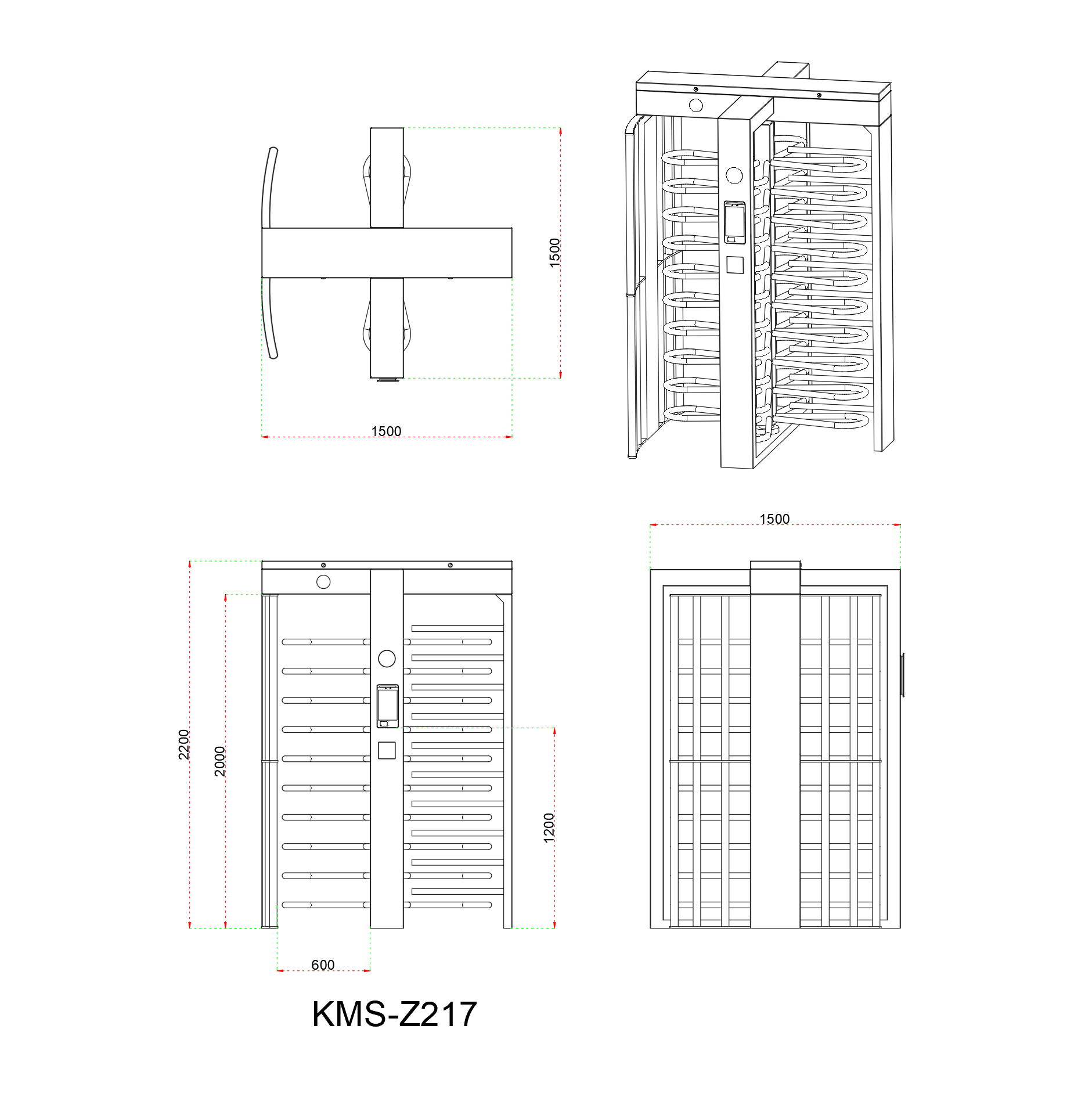

1500mm × 1500mm × 2200mm (Sizes Can Be Customized) |
| Traffic Speed |
30 People/Minute |
| Service Life |
≥5 Million Times |
| Channel Width |
600mm |
| Working Voltage |
AC220V±10%/50HZ 50W |
| Relative Temperature |
≤95% Not Condensing |
| Product Power |
100W |
| Opening Time |
0.5 Seconds |
| Ambient Temperature |
-30℃ to 70℃ |
| Work Environment |
Indoor and Outdoor |
| Protection Grade |
IP43, IP54 |
| Access Control Type |
RFID/IC/ID card, Face/Iris recognition, Fingerprint identification, QR code, Mobile phone/NFC, Password, Remote door opening |
| Communication Interface |
Relay switch signal/12V level signal/12V pulse signal with pulse width＞100ms; RS485 or TCP/IP |
| Barrier Material |
304 stainless steel round tube / 201 stainless steel with baked paint |
| Passage Frame |
304 stainless steel / 201 stainless steel with baked paint |
Frequently Asked Questions
What is a full height turnstile gate?
A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.
What is the difference between a full height turnstile and a tripod turnstile?
A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.
Can this turnstile work with facial recognition systems?
Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.
Is this turnstile suitable for outdoor use?
Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.
How many people can pass through the turnstile?
The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.
Does the turnstile support emergency opening?
Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.
Why Choose Our Full Height Turnstile Gate?
Choosing the right pedestrian security gate is essential for protecting your facility. Our full height turnstile system combines mechanical strength, smart access control compatibility, and reliable performance to deliver a professional security entrance solution.
Whether you need access control for a factory, stadium, government building, transportation station, or restricted facility, this high-security turnstile provides an effective way to manage pedestrian access.
Request a Free Quote
Looking for a reliable full height turnstile gate supplier? Contact us today for:
- Free product consultation
- Customized access control solutions
- Competitive factory pricing
- Technical support
- Project-based recommendations
Request your free quote now and improve your facility security with our professional full height turnstile access control system.
