Full Height Turnstile Equipped With An Automatic Time Based Billing System
This intelligent full height rotating turnstile is specifically designed for unattended court access control in outdoor environments. It is compatible with identification systems such as QR code, NFC, and facial recognition, allowing flexible integration into various access control and billing systems. It supports automatic time based billing according to entry and exit times, enabling precise fee management.
The 120 degree angle structure effectively prevents tailgating and resists forced disassembly. The mechanism and rotating arms are secured with special fasteners, providing anti theft and anti tampering capabilities. The anti pinch and anti collision function uses a dual mechanism of mechanical slipping and infrared detection: when movement is obstructed, the rotating torque is automatically reduced and swinging stops, ensuring pedestrian safety.
Upon power failure, the turnstile automatically unlocks and switches to mechanical free passage mode, fully complying with fire evacuation requirements. This turnstile integrates security, billing, durability, and intelligence, making it an ideal choice for unmanned court entrance management.
Features and Advantages
-
Automatic time based billing: The access control device accurately records entry and exit times, automatically calculates usage duration, and generates fees. Suitable for time based billing scenarios such as courts, reducing manual intervention.
-
120 degree anti tailgating and anti violence: The 120 degree rotating design effectively prevents tailgating and unauthorised entry. At the same time, it enhances structural resistance against forced disassembly, improving equipment security in unattended outdoor environments.
-
Anti theft and anti tamper mechanism: The mechanism and rotating arms are connected using special fasteners that cannot be removed without dedicated tools. This effectively prevents theft or vandalism of components, reducing maintenance risks.
-
Dual anti pinch and anti collision: Mechanical slipping and infrared detection work together: when resistance is encountered, the mechanical part automatically slips to reduce motor torque, while infrared sensors detect the pedestrian's position in real time and stop the swinging motion. Collision force is kept within a safe range, protecting pedestrian safety.
-
Automatic unlocking on power failure: When power fails, the gate automatically unlocks and switches to mechanical free passage mode, ensuring rapid evacuation in emergencies and meeting fire safety code requirements.
-
High compatibility with multiple identification systems: Seamlessly integrates with identification devices such as QR code, NFC, and facial recognition. Easily interfaces with existing access control or billing systems to achieve intelligent entry and exit management.
Product Specifications
| Product Name |
Full Height Turnstile |
| Protection Grade |
IP43, IP54 |
| Communication Interface |
I/O, RS485 |
| Traffic Speed |
30 People/Minute |
| Pass Width |
600mm |
| Rotation Angle Per Step |
120° |
| Barrier Material |
304 Stainless Steel Round Tube / 201 Stainless Steel With Baked Paint |
| Passage Frame |
304 Stainless Steel / 201 Stainless Steel With Baked Paint |

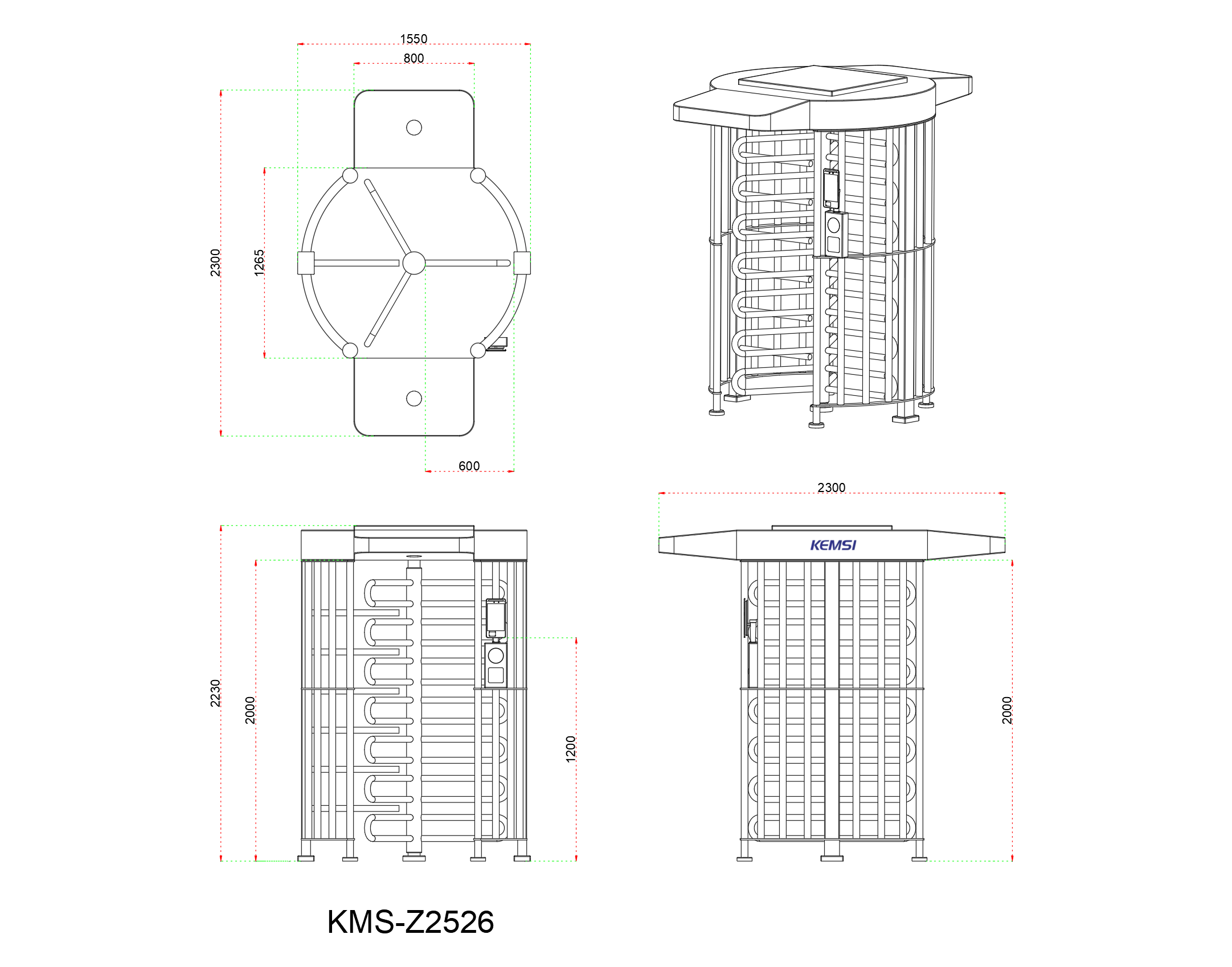

| Product Size |
1500mm × 1500mm × 2260mm |
| Working Voltage |
220V ± 10% |
| Ambient Temperature |
-20℃ to 65℃ |
| Relative Humidity |
≤95% Not Condensing |
| Work Environment |
Indoor and Outdoor |
| Product Power |
50W |
| Access Control Type |
RFID/IC/ID Card, Face/Iris Recognition/Fingerprint Identification, QR Code, Mobile Phone/NFC, Password, Remote Door Opening |
| Communication Interface |
Relay switch signal/12V level signal/12V pulse signal with pulse width >100ms; RS485 or TCP/IP |
Frequently Asked Questions
Q1: What is a full height turnstile gate?
A full height turnstile gate is a high-security pedestrian access control barrier that uses full-height rotating arms to prevent unauthorized entry. It is commonly used in places requiring strict security management.
Q2: What is the difference between a full height turnstile and a tripod turnstile?
A tripod turnstile only controls access at waist height, while a full height turnstile provides a complete barrier that prevents climbing over or bypassing, making it more suitable for high-security environments.
Q3: Can this turnstile work with facial recognition systems?
Yes. The full height turnstile supports integration with facial recognition, fingerprint scanners, RFID readers, QR code systems, and other access control technologies.
Q4: Is this turnstile suitable for outdoor use?
Yes. With a durable stainless steel structure and weather-resistant design, it can be installed in outdoor environments such as stadium entrances, factories, and construction sites.
Q5: How many people can pass through the turnstile?
The traffic capacity depends on the model and access management settings. It is designed for continuous pedestrian flow in high-volume applications.
Q6: Does the turnstile support emergency opening?
Yes. The system can be connected with fire alarm systems and emergency controls to allow rapid evacuation when required.
